Home>Products > Steel Fiber Production Line

Most Advanced Glued Steel Fiber Production Line

Model: AIE-GXW-N
Wire diameter: 0.5 - 1.0mm
Steel fiber length: 25 - 60mm
Material: carbon steel wire Working speed: 40-80 meters/min
Production capacity: 6-8 tons per 10 hours
Total length of production line: 43 meters (can be customized)
Total motor power: 56.4kw
Wire pay-off: 80-100 pcs shaft to load 80-100 spools
spool loading capacity: 300-500kg/pcs
Spool type: common welded or precise maching

Send Inquiry

Description

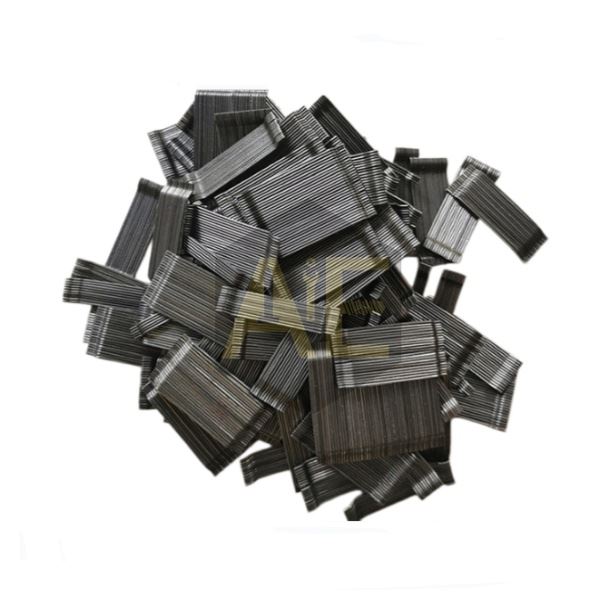

introduction of glued steel fiber

Glued steel fiber is produced from cold-drawn high tensile low-carbon steel wire.

Individual hooked steel fibers are bonded into rows by water-soluble adhesive. When mixed into concrete, the glue dissolves quickly in water, separating fibers evenly inside the concrete matrix and effectively preventing fiber balling. With double hooked ends, fibers form firm anchorage with concrete, restraining crack propagation, improving flexural strength, abrasion resistance, impact resistance and structural toughness.

It is widely used in industrial floors, tunnel shotcrete, highway pavement, bridge decks and precast concrete components.

Specifications can be customized in length, diameter and tensile strength, complying with ASTM A820 and EN 14651 standards.

Technical Data

Model	AIE-GXW-N
Wire diameter	0.5 - 1.0mm
Steel fiber length	25 - 60mm
Material	carbon steel wire
Working speed	40-80 meters/min
Production capacity	6-8 tons per 10 hours
Total length of production line	43 meters (can be customized)
Total motor power	56.4kw
Wire pay-off	80-100 pcs shaft to load 80-100 spools
spool loading capacity	300-500kg/pcs
Spool type	common welded or precise maching

What we can do for you

AIE strictly controls every processing procedure of the steel fiber making machine, with precise feeding, stable heating and accurate cutting functions working in coordination.

Pre-sales: Production line layout design, machine selection, sample testing & investment evaluation

In-sales: Whole production tracking, complete machine testing, seaworthy packaging & full set of customs documents.

After-sales: Remote installation & commissioning, English technical training, 24-hour technical support, long-term spare parts supply, optional overseas on-site service.

We are experts on steel fiber machines

We are a one-stop steel fiber machinery manufacturer from China, providing full-cycle services for overseas customers.

We supply complete steel fiber production lines for manufacturing straight, hooked-end and glued bundled steel fiber, continuously supporting clients to expand construction material business.
