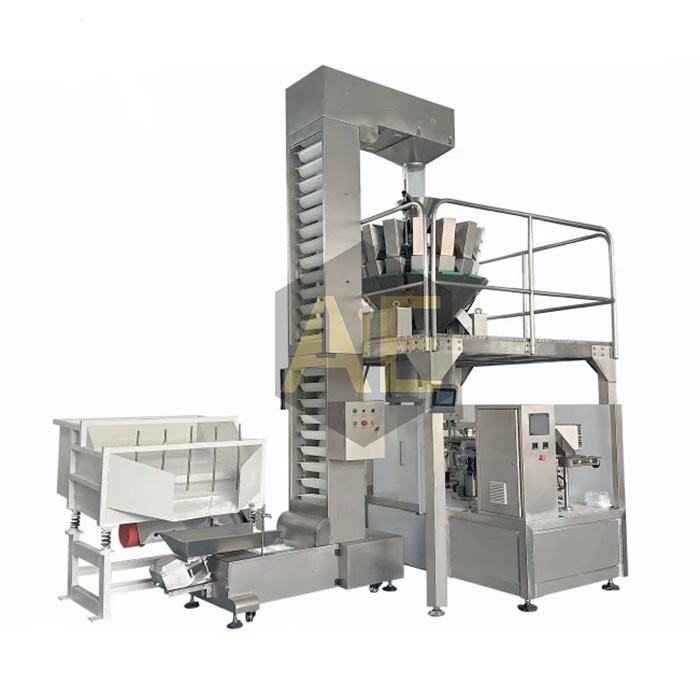

Steel Nail Automatic Bag Packing Machine

Product: Hardware, Nails

Packaging Requirements:

1. Single-item packaging;

2. Bag Type: Back-seal bag;

3. Nail length: As per customer's requirements;

4. Package weight: As per customer's requirements;

1-5kg Wire Nails Bag Packing Machine

Functional Requirements:

1. Measure materials by weight, then automatically package them using the packaging machine;

2. Capable of automatic loading, weighing, and packaging;

3. Capable of rapid product changeovers.

Steel Nail Automatic Bag Packing Machine

Large silo & angle feeder

1. Frame material: carbon steel

2. Belt width: 450mm

3. Belt material: PVC thickness 3mm (skirt with partition)

4. Overall height: 4000mm

5. Silo capacity: can hold about 1 ton of nails

Head 3-liter electronic weigher

1. Thickness of weighing bucket: 2.0mm

2. Frame material: stainless steel 304

3. Weighing sensor: Japan Mebea

4. Because the nail is 100mm long, only 3L single-door bucket can be selected (if you choose 2.5L double-door bucket,the double-door structure is easy to deform)

Platform

1.Material: carbon steel

2.Dimensions: 2200x2200x2200mm

3.Support electronic weigher

Packaging machine (including finished product conveyor)

1. Material: Stainless steel 304

2. Packaging film: PE film for rolls (the film material needs to be tougher, hardware products are heavier, and they may be damaged during transportation after packaging)

3. Bag size: (L) 100-450 (W) 75-300

4. Packaging speed: 15-30 bags/minute

5. Printer with ribbon and charactersto print date

6. Equipped with a finished product conveyor

Weight checker (belt type)

1. Material: Stainless steel 304

2. Weight range: Within 6000 grams (weight can be set by yourself)

3. Accuracy: can be set freely +/-5 ~ 10g

4. Unqualified weight will be automatically removed

1. Packaging Speed: Approximately 20-30 minutes; depending on the weighing specifications;
2. Required Labor: Minimizes labor costs, requiring only one person to complete the entire production line, including loading, weighing, bagging, filling, film sealing, counting, and finished product conveying.
3. Product Changeover: Conveniently switch materials. Simply empty the hopper and change without adjusting the machine. Set the target production weight on the computer screen.
4. High Accuracy: The 14-bucket electronic scale offers high precision and guaranteed accuracy. The slower the speed, the higher the accuracy.
5. Versatility: In addition to automatically performing functions such as weighing, bagging, filling, sealing, cutting, and counting, this equipment can also be equipped with optional features such as automatic loading, production date printing, finished product inspection, and finished product conveying upon request.
6. High Controllability: The sophisticated PLC control system provides a user-friendly interface with a simple and intuitive user interface, allowing for easy control of the entire machine.
7. High Stability: High-performance drives and motors, along with imported electrical components, significantly enhance the machine's stability and accuracy, resulting in superior overall performance and attractive packaging.
8. Long Service Life: The machine's main components are from renowned domestic and international brands, extending its service life and reducing subsequent maintenance costs.
