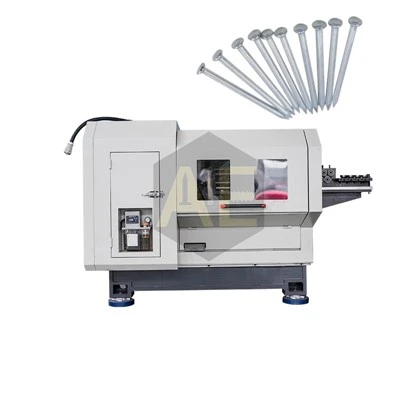

Z94-1C 2C 3C 4C 5C 6C Automatic Wire Nail Making Machine Manufacturer

Model Nail Diameter Nail Length Speed Range Motor Power Machine Weight Primary Application Z94-1C 0.8-2.0mm 9-30mm 450-460 pcs/min 1.5kw 450-1200kg* Small nails, tacks Z94-2C 1.2-2.8mm 16-50mm 320-380 pcs/min 2.2-3.0kw 780-1450kg* Common nails Z94-3C 1.6-3.5mm 25-76mm 300-320 pcs/min 3.0kw 1050-1800kg* Common nails Z94-4C 2.8-5.0mm 30-120mm 220-280 pcs/min 4.0kw 1800-2000kg Medium nails Z94-5C Varies by submodel Varies by submodel 130-220 pcs/min 5.5kw 2150-2700kg Large nails Z94-6C 3.0-8.0mm 80-220mm 130-200 pcs/min 7.5-11kw 4500-5000kg Heavy-duty nails

Send Inquiry

Description

Key Capabilities

Common Round Nails / Smooth Shank Nails: Standard nails for general carpentry.

Annular Ring Shank Nails (Z94-K): Nails with rings for superior pull-out resistance in wood.

Helical / Screw Shank Nails (Z94-L): Nails with a twisted spiral shank for maximum holding power.

Barbed Nails: For specialized applications like ductwork or insulation.

Square Twisted Nails, etc.
It achieves this through interchangeable "threading" or "ringing" attachments that roll or press the pattern onto the nail shank before the head is formed.

KEY FEATURES OF Z94-C SERIES (All Manufacturers)

Piston/Plunger Structure: Enables high working speed with low noise and reduced impact force -3-5-8

Heat-Treated Components: Crankshaft, cam, and gears made of high-grade alloy steel with professional heat treatment -2-8

Auto Lubrication: Centralized oil system (Uniwin feature) -2

Adjustable Nail Length: Via eccentric disc adjustment -8

Spare Parts Included: Nail mould, nail cutter, pin punch with each machine -2

Special Nail Capability: Can produce YouMao nails (coil nails), ring shank, screw shank, and other special-shaped nails -3-5-7

Critical Actions Before Purchase:

Request a formal quotation with machine serial number and confirmed specifications

Demand weight verification – this is the most inconsistent parameter and indicates construction differences

Clarify Z94-5C and Z94-6C submodels – ask specifically: "Is this the standard speed version (200+ pcs/min) or heavy-duty version (130 pcs/min) with longer nail capacity?"

Confirm warranty terms – offer 2 years;

Request video inspection – all suppliers offer this; use it to verify operation -1-4-6

Ask about CE/ISO certification – confirm CE; verify current certification
