Introduction of duplex nails

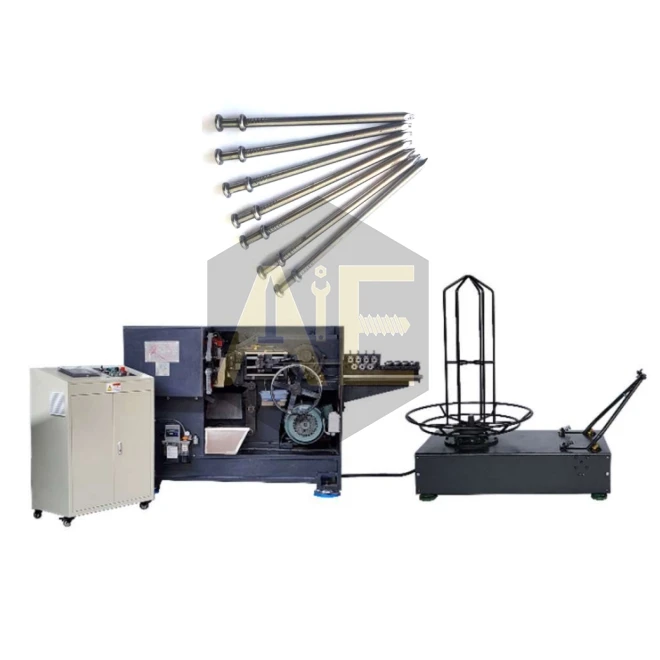

High Speed Duplex Nail Making Machine
Duplex nails (also known as double-ended nails or temporary nails) are designed for temporary fixation, easy disassembly, and reusability, emphasizing "fixed without damage, and usable after disassembly."
Duplex nail working principle:
Lower cap (fastening cap): Driven into the wood, securing the workpiece.
Upper cap (removing cap): Extends outwards; when removing the nail, the tool is positioned between the two caps for easy removal without bending the nail or damaging the material.
Material: Primarily galvanized iron wire, rust-resistant, high-strength, and reusable.
Technical Data
|
Model |
AIE-SMD150 |
|
Max. nail dia. |
5.0mm |
|
Min. nail dia. |
2.5mm |
|
Max. nail length |
150mm |
|
Min. nail length |
70mm |
|
Design capacity |
550pcs/min |
|
Power |
11kw |
|
Dimension(mm) |
1530*1430*1300 |
|
Weight |
4000kg |
|
Finished product |
duplex nails |
machine advantages
High Speed Duplex Nail Making Machine
1. Shorter stroke (12mm) compared to traditional machines with a stroke of approximately 100mm
1.1. Stable performance and extremely low defect rate
1.2. Lower mechanical wear
1.3. More durable clamping dies and punches
2. Precise nail length control
2.1. Equipped with sensors to detect nails that are too long or too short
2.2. Active wire feeding ensures straight nail shanks and consistent length regardless of coil weight
3. Excellent metal debris separation
3.1. Effectively protects the conveyor belt
3.2. Ensures good and consistent nail head shape
4. High nail quality
Consistent nail head and shank length (tolerance 0.5 mm), extremely low defect rate
